Read and Write BLF Files

예제 파일

LabVIEW 2014 / 2017 / 2018

Read Write BLF API 2014 Version 2.zip

0.40MB

Read Write BLF API 2017 Version 4.zip

0.40MB

Read Write BLF API 2017 Version 8 Backsaved.zip

1.37MB

Read Write BLF API 2018 Version 8.zip

1.39MB

개요

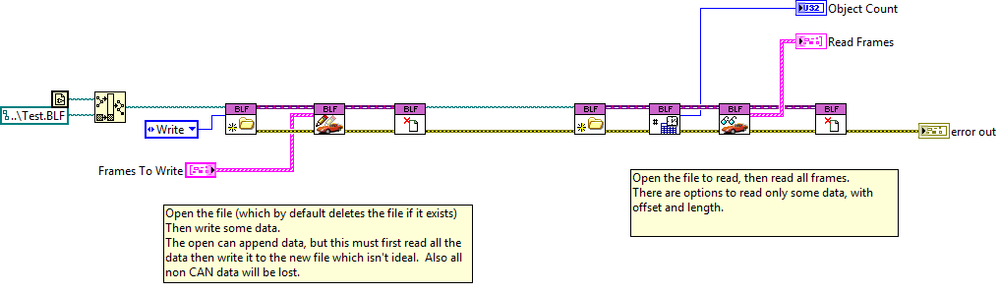

Vector사에서 제공하는 binlog.dll을 이용하여 LabVIEW에서 CAN 데이터 로깅에 사용되는 BLF 파일을 읽거나 쓰기할 수 있도록 제공하는 LabVIEW API

버전 히스토리
Version 8
Raw Open has Overwrite inputRaw added Polymorphic Write CAN Data, that can write a single frame, multiple frames to the same channel, or multiple frames to different channels.Raw bug fix with ID mask of standard CAN frames when reading.
Version 7
Bug fix with uncommon object typesAdded IDs To Return filtering on the Raw Read function
Version 6
Made reading more robust supporting other objects like System Variables in the BLF.
Version 5
Added a secondary API for reading and writing using the OpenG zip utilities.Added reading and writing CAN FD frames
Version 4
When writing to a BLF the day light savings flag is used and will offset the write by an hour if necessaryObject Offset was removed and instead before every read the Object Offset is read from the session. This is used instead of tracking the current offset since it had issues with newer CANalyzer files
Version 3
Bug fix with the Read CAN Frames.vi which now accepts reading CAN_MESSAGE2 which newer Vector tools may write toFixed Read CAN Frame.vi to return an ID masking out the 29 bits for extended, not 27
Version 2
Back saved to 2014Added CAN Channel input and output to the Read and Write functions
